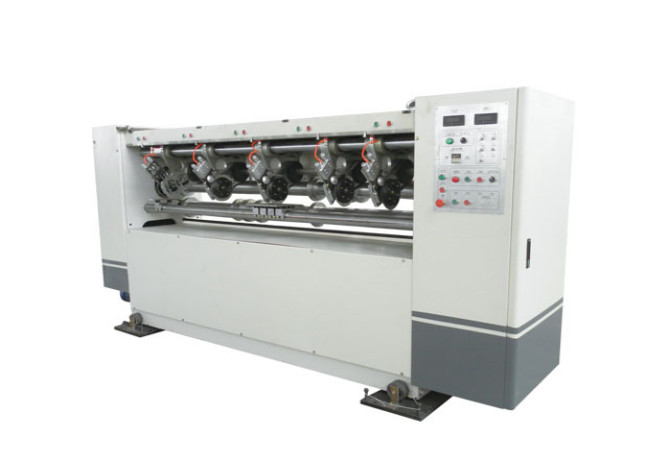

Precise Thin Blade slitter scorer machine for Corrugated Box making machine
Precise Thin Blade slitter scorer machine for Corrugated Box making machine
Precise Thin Blade slitter scorer machine for Corrugated Box making machine
Precise Thin Blade slitter scorer machine for Corrugated Box making machine
Model
NCBD

Item specifics

Effective width
1400mm
Mechanical configuration
5knives 8lines
Cutter width
135mm ~1850mm

Product review

Description

Precise Thin Blade slitter scorer machine for Corrugated Box making machine

1.Design speed :200m/min   250m/min  width:1400mm-2500mm
2.Memory of 999 order,non-stop changeover or manual change over can be realized
3.Slitter,crimping round single randomly servo control,single quickly accurate
4.Front two rovos of the preaure line wheel configuration,any combinaton of lie pressuring wheel to realize zero pressure line
5.Automatic synchronize with the corrugated line and can  also get in line with manufacture management system High compatibility
6.High quality imported industry computer and PLC equipped composing the CNC system
7.There are three types of scores:concave-convex(single wall),concave -convex(double wall) and convex-flat,which can also be alternated with electrical system scoring can also be computer controlled with fine scoring result
8.Thin tungsten steel alloy blade,sharpe and long life of over 8 million meters
9.Computer controlled auto grinding and manual grinding also applicable.Alternative grinding the blade when slitting the board,it can increase efficiency
10.Imported synchronous belt applied for conveying with higher precision,longer life and lower noise
11.Standard waste,for a single location of absorb waste with the knife synchronous adjustment.
