Duplex Corrugated Paper Preheater Machine
- Model
- WJ100-1800
Item specifics
- Effective width
- 1800mm
- Roller Diameter
- ¢900mm
- Angle Diameter
- ¢110mm×2
- Steam temperature
- 150-200 ℃
Product review
Description

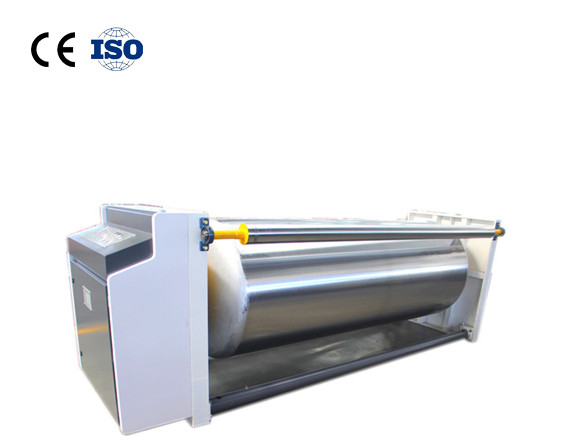

Duplex Corrugated Paper Preheater Machine
Structural features
The preheating roller is designed with butterfly head, which conforms to the first class national standard of pressure vessel and has the certificate of pressure vessel.
The roll surface after precision grinding, fine grinding and hard chromium plating processing,surface friction is small and durable。
Electric adjustment wrap angle , wrap angle can be rotated within 360 °to adjust the paper heat area .
Technical parameter
Effective width:1800mm
Diameter of the preheat roller:¢900mm
Diameter of the angle:¢110mm×2
Steam temperature:150-200 ℃
Steam pressure:0.8-1.3Mpa
Motor power:250W short(S2)work system
