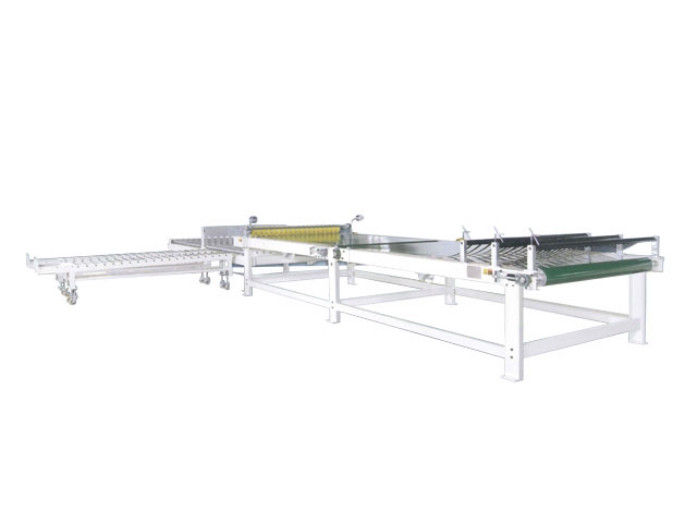

Automatic Paper Sheet Delivery & Side Corrugated Paper Conveyor Stacker
Automatic Paper Sheet Delivery & Side Corrugated Paper Conveyor Stacker
Automatic Paper Sheet Delivery & Side Corrugated Paper Conveyor Stacker
Automatic Paper Sheet Delivery & Side Corrugated Paper Conveyor Stacker
Automatic Paper Sheet Delivery & Side Corrugated Paper Conveyor Stacker
Model
DMT-120

Item specifics

max accumulation length
3000mm
max stack height
200mm
Walking Motor
1.5KW
Main conveyor motor
3KW

Product review

Description

Automatic Paper Sheet Delivery & Side Corrugated Paper Conveyor Stacker
Structural features:
Adopted on the 16th channel welded。Electric adjustment of cardboard the size of the lateral output pneumatic control board, electrically adjustable conveyor speed.
Cardboard sheets to the desired number or height requirements will be controlled by a foot switch out of cardboard。
Vertical bin using wide flat belt conveyor transport。
Technical parameters:
The maximum accumulation length:3000mm
 The maximum stack height:200mm
Power motors and electrical parameters:
Main conveyor motor:3KW   adopt frequency motor
Lateral output of the motor:1.5KW    Three-phase asynchronous motor
Walking Motor:1.5KW    Three-phase asynchronous motor
