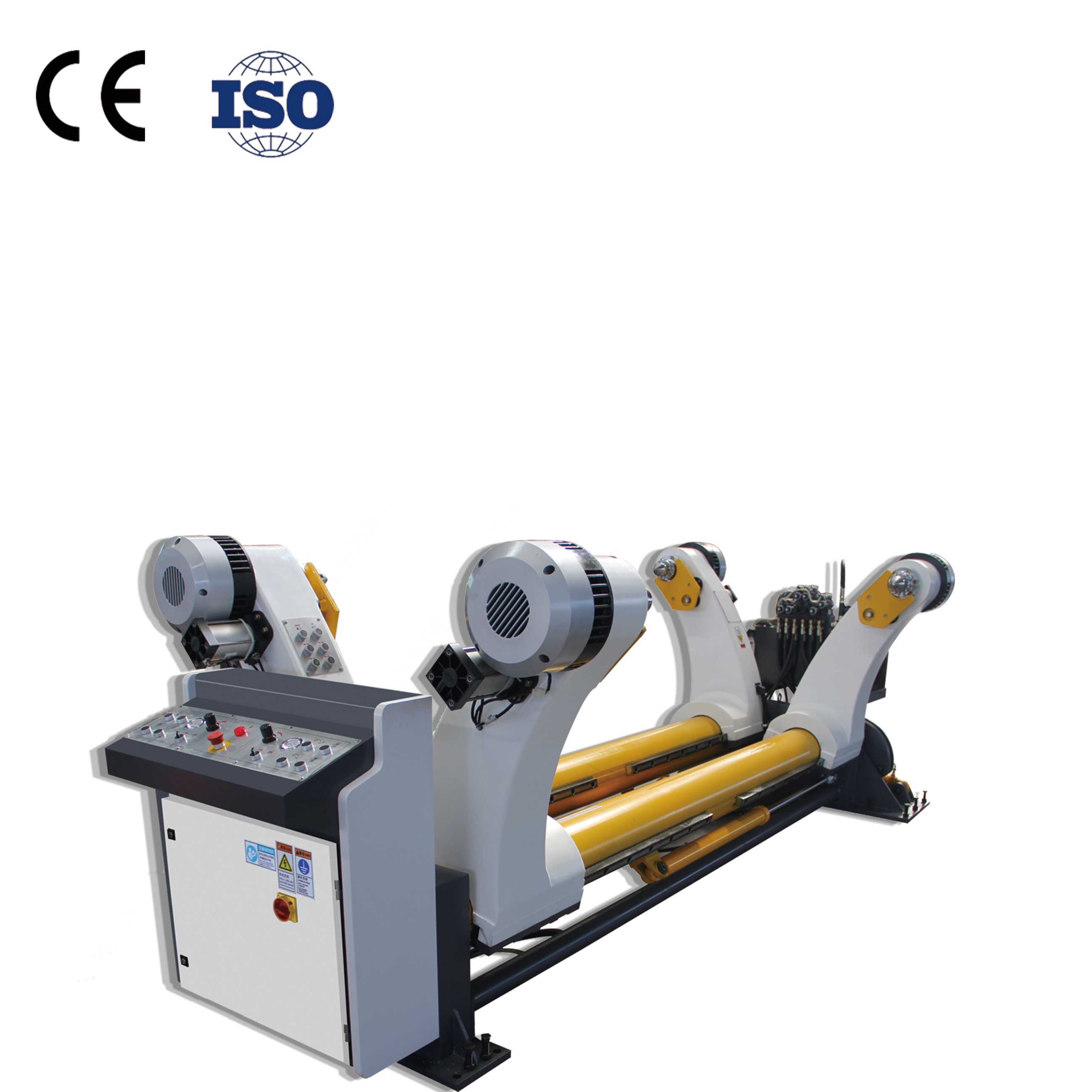

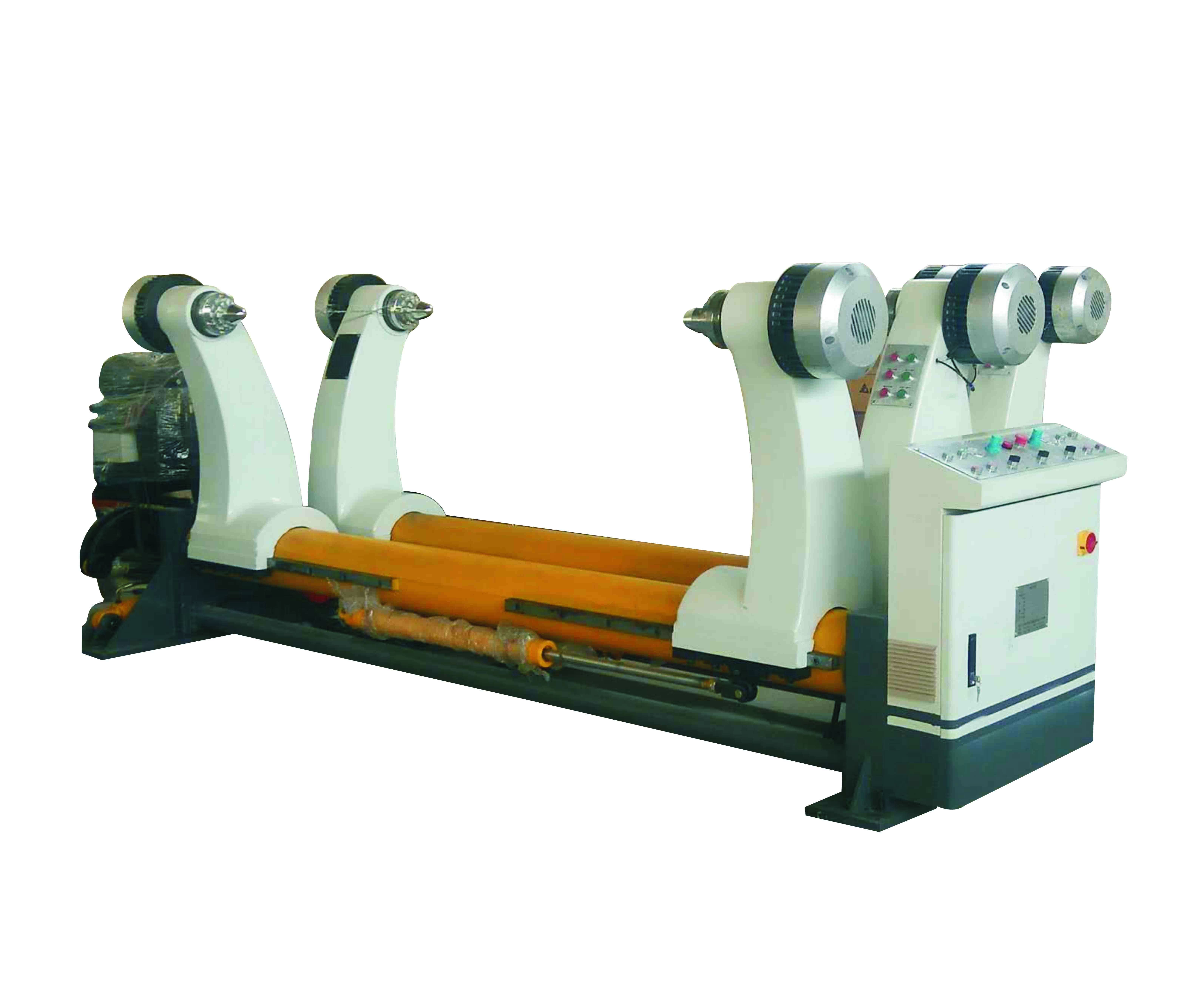

High performance Shaftless Mill Roll Stand for corrugator for Corrugated Cardboard Production Line
High performance Shaftless Mill Roll Stand for corrugator for Corrugated Cardboard Production Line
High performance Shaftless Mill Roll Stand for corrugator for Corrugated Cardboard Production Line
High performance Shaftless Mill Roll Stand for corrugator for Corrugated Cardboard Production Line
Model
ZJ-V5B

Item specifics

Paper clip range
1000mm~1800mm
Folder diameter
350mm~1500mm
Lifting hydraulic cylinder
¢100×440mm

Product review

Description

High performance Shaftless Mill Roll Stand for corrugator for Corrugated Cardboard Production Line
Structural features
Adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and rightand others,the lifting of the paper adopts hydraulic drive.
Brake adjustable adopts multipoint braking system.Each paper rack is equipped with two paper carts thatcan be served simultaneously from both sides.
Technical parameter
Paper clip range  maximum : 1800mm     minimum : 1000mm
Folder diameter  maximum : 1500mm     minimum : 350mm
Main shaft diameter of paper holder:¢240mm
Gas source work pressure(Mpa):0.4---0.8Mpa
Hydraulic system parameters
Work pressure(Mpa):16---18Mpa
Lifting hydraulic cylinder:¢100×440mm
Clamping hydraulic cylinder:¢63×1300m
Hydraulic station motor power:3KW --380V -- 50Hz
Solenoid valve voltage:220V  50 Hz
