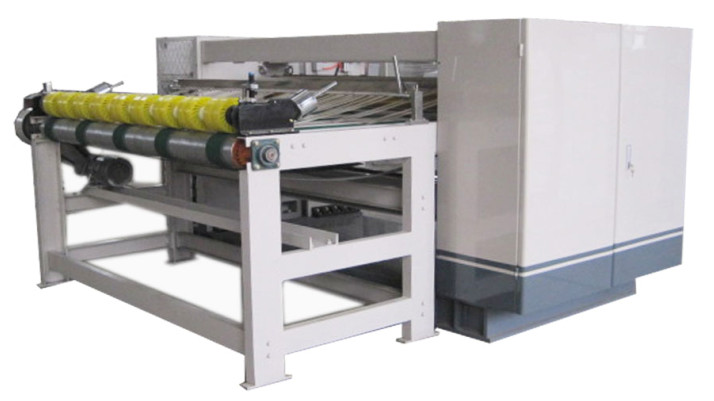

China factory cutter helical knife Corrugator for Corrugated Cardboard Production Line
China factory cutter helical knife Corrugator for Corrugated Cardboard Production Line
China factory cutter helical knife Corrugator for Corrugated Cardboard Production Line
China factory cutter helical knife Corrugator for Corrugated Cardboard Production Line
Model
NCBD

Item specifics

Effective width
1800mm
Single machine weight
3500kg
Roll diameter
160mm
Cutting length
500-9999mm
Working speed
100m/min

Product review

Description

China factory cutter helical knife Corrugator for Corrugated Cardboard Production Line
1.Design speed :200m/min   250m/min  width:1400mm-2500mm
2.Memory of 999 order,non-stop changeover or manual change over can be realized
3.Slitter,crimping round single randomly servo control,single quickly accurate
4.Front two rovos of the preaure line wheel configuration,any combinaton of lie pressuring wheel to realize zero pressure line
5.Automatic synchronize with the corrugated line and can  also get in line with manufacture management system High compatibility
6.High quality imported industry computer and PLC equipped composing the CNC system
7.There are three types of scores:concave-convex(single wall),concave -convex(double wall) and convex-flat,which can also be alternated with electrical system scoring can also be computer controlled with fine scoring result
8.Thin tungsten steel alloy blade,sharpe and long life of over 8 million meters
9.Computer controlled auto grinding and manual grinding also applicable.Alternative grinding the blade when slitting the board,it can increase efficiency
10.Imported synchronous belt applied for conveying with higher precision,longer life and lower noise
11.Standard waste,for a single location of absorb waste with the knife synchronous adjustment.
