- Maximum paper width
- Working speed
- 120 m/min
- Longitudinal cutting paper accuracy
- Crosscutting precision
- Corrugated combination
China Fully Automatic 5 ply corrugated board production line
1.5 set Hydraulic shaftless mill roll stand
Spindle ¢ 240mm, hyperbolic heavy rocker, expand chuck , multi-point brake, hydraulic drive lifting, panning left and right on the middle.
2.10 set Rail and Tracks
The guide track is 6000mm and the trolley is welded with 10mm。
3.2 set Pre-heater
Roller ￠600 mm, Pressure vessel certificate Electric adjustment package Angle.Angle can be adjusted within the range of 360 ° paper heated area

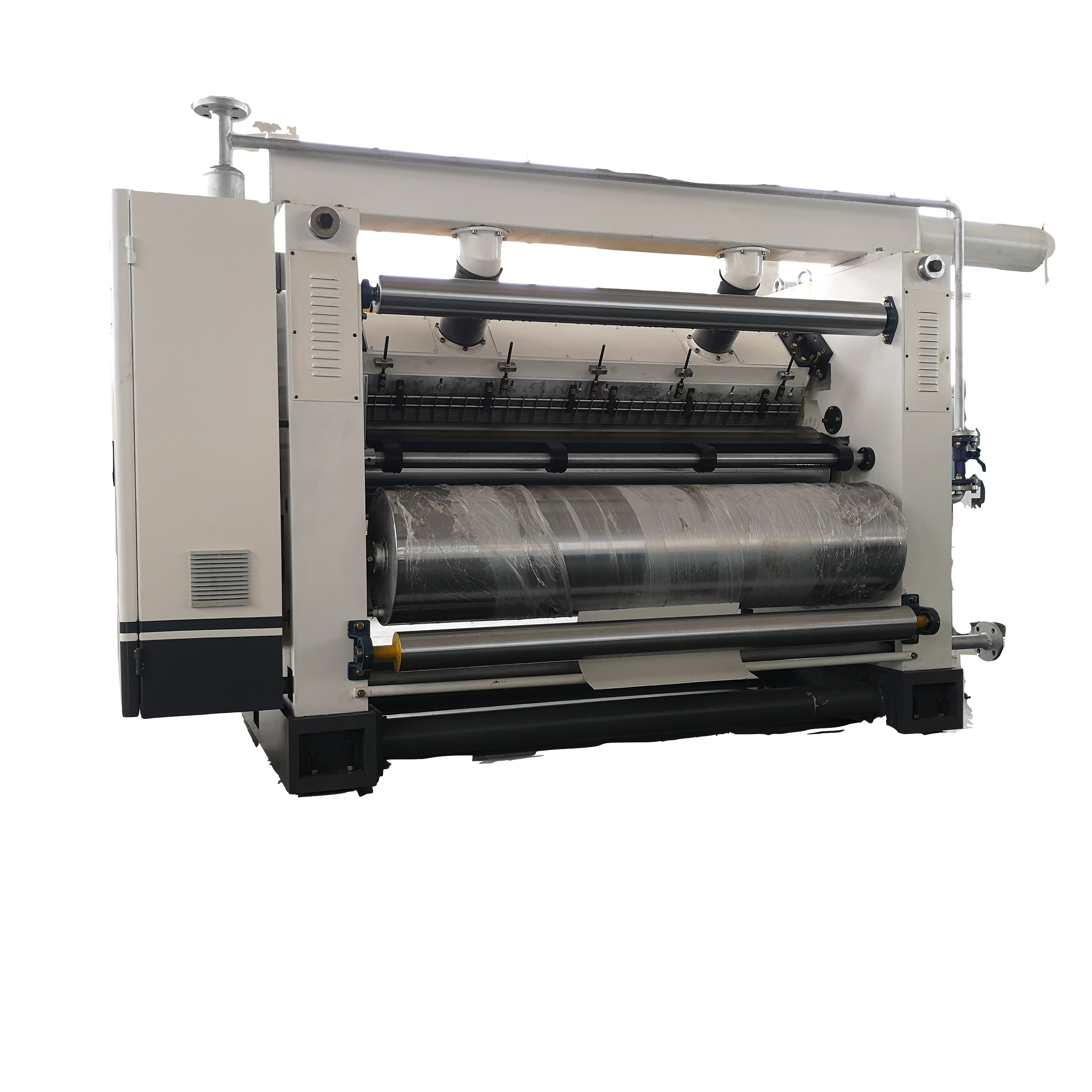

4.2 set Fingerless type single facer
Corrugated main roller ￠320mm，material with 48CrMo Tile roll modular group lifting transfer.Airbag ballasting structure，import main bearing，
PLC automatic control glue，HMI touch screen，Breaks automatic parking relief，steam heating way.
5.one set Triple preheater
Roller ￠600 mm, Pressure vessel certificate Electric adjustment package Angle.Angle can be adjusted within the range of 360 ° paper heated area.
6.1 set Double glue machine
The diameter of the roller is 269mm.
Independent variable frequency motor drive, manual。 Adjustment of glue clearance.
7.1 set Conveyor bridge
Adopt independent variable frequency motor drive, pull paper adsorption tensioning device
8.1 set Double facer
Rack 360 mm GB channel，Chrome hot plate 600 mm *20 pieces，The whole structure of the
hot plate design.PLC automatic control press plate. Temperature display, frequency motor.
９.１Corrugating Machine Slitter Scorer
