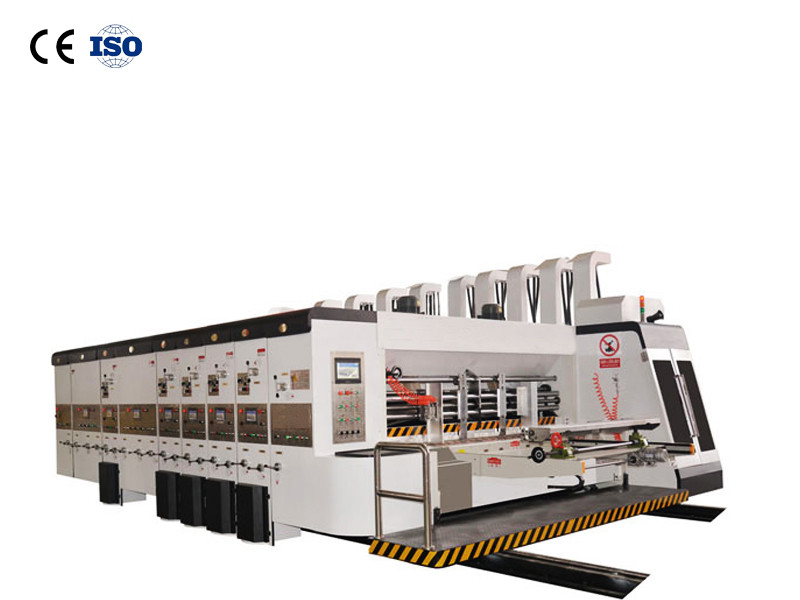

huayu Lead edge feeder colors Flexo printer slotter rotary die cutter machine/corrugated carton box printing slotting die cutting Semi-automatic corrugated carton folding machine
huayu Lead edge feeder colors Flexo printer slotter rotary die cutter machine/corrugated carton box printing slotting die cutting  Semi-automatic corrugated carton folding machine
huayu Lead edge feeder colors Flexo printer slotter rotary die cutter machine/corrugated carton box printing slotting die cutting  Semi-automatic corrugated carton folding machine
huayu Lead edge feeder colors Flexo printer slotter rotary die cutter machine/corrugated carton box printing slotting die cutting  Semi-automatic corrugated carton folding machine
huayu Lead edge feeder colors Flexo printer slotter rotary die cutter machine/corrugated carton box printing slotting die cutting  Semi-automatic corrugated carton folding machine
huayu Lead edge feeder colors Flexo printer slotter rotary die cutter machine/corrugated carton box printing slotting die cutting  Semi-automatic corrugated carton folding machine
Model
1228

Item specifics

color
white
Maximum speed (piece/min)
80
Paper feeding precision (mm)
±1.0
Maximum feed size (mm)
1200x2900
Minimum feed size (mm)
350x600
Size of drawing paper (mm)
1500x2900
Maximum printing area (mm)
1200x2800
Printing set (mm)
±0.5
Thickness of standard printing plate (mm)
5mm
Minimum slotting interval (mm)
Positive knife 160x160
Minimum slotting interval (mm)
Scalpel 270x65
Maximum groove depth (mm)
300
Slotting accuracy (mm)
±1.5
Die cutting precision (mm)
±1.5

Product review

Description

Semi-automatic corrugated carton folding machine
Main featrues:
Host and digital display control system, can store general orders, easy to operate.
 Electronic suspension, automatic reset, quick replacement.
Each unit is equipped with an emergency stop switch and safe operation control.
 The gap adjustment adopts electric adjustment device, which is more convenient to operate
High-strength design of the whole machine, spray-type circulating lubrication system.
 International components such as electrical components, main bearings and start control components.

Paper feeding unit:

· Roller leading edge paper feeding system, independent electronic shaft, extended paper feeding. Adopting international advanced technology, the system is stable and the paper feeding precision is high.

· The adsorption fan helps to feed the paper, and the air volume is adjusted by frequency to ensure the smooth feeding of the curved cardboard. Suitable for 3, 5, 7 pressed corrugated board.

· The front bezel is manually adjusted to display the dial, which is convenient.

• The left and right side bezels can be individually adjusted and displayed digitally.

·The rear baffle is electrically adjusted, which is simple and convenient.

· Double conveying roller mechanism, the first group of paper feeding rollers adopts a floating structure, and the pressure can be adjusted by the spring force. Manually adjust the gap, the logo is displayed.

The adjustment range is from 1 to 12 mm.

• A brush at the entrance of the paper feed roller to remove impurities from the surface of the paperboard. A dustproof mechanism is installed between the two sets of paper feed rollers to suck the cardboard surface.

Impurities improve print quality.

Product Details Map

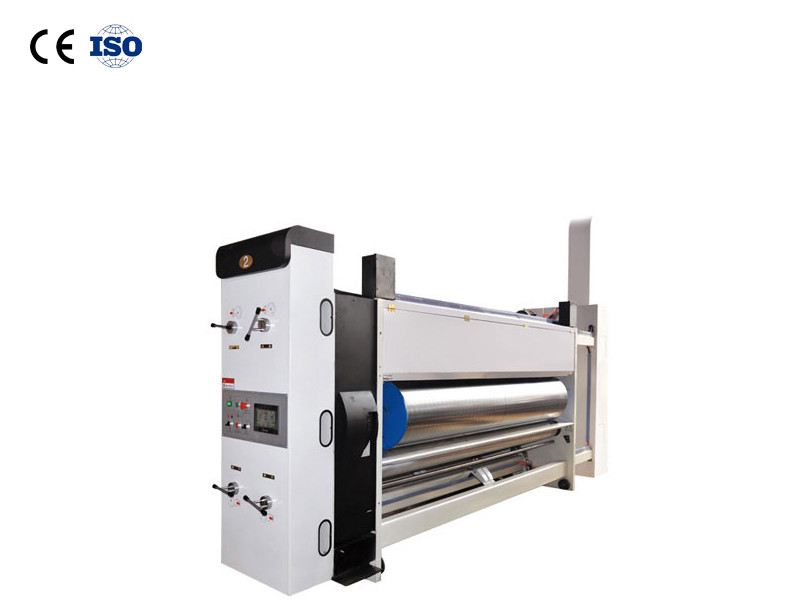

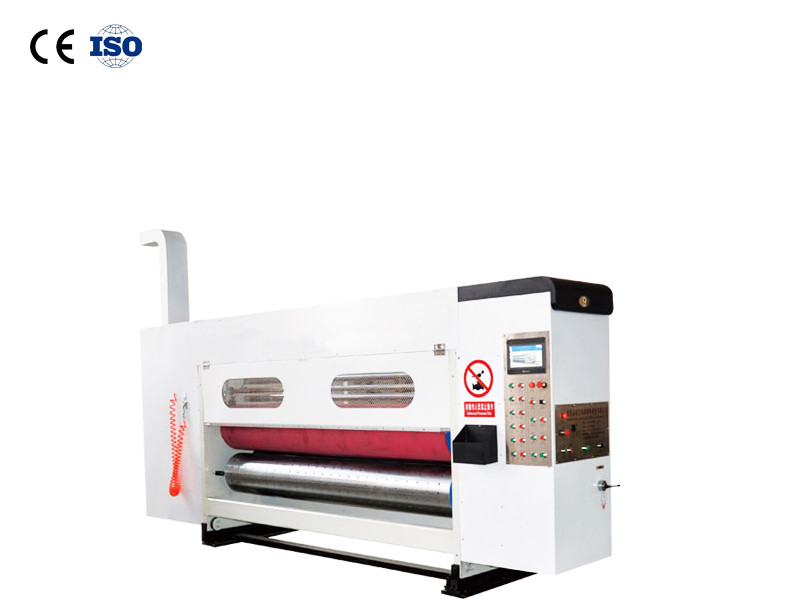

Printing unit:

· Printing roller: cylinder, surface grinding, hard chrome plating. Diligent balance correction, stable links.

· Adjust the axial adjustment manually, the axial adjustment range is 10mm.

 Ratchet fixed roller shaft. The full version of the slotted loading and unloading plate, the electronic control of the foot switch is the opposite.

• Manually adjust the gap of the pressure roller and display the label. The adjustment range is 4~12mm.

· Rubber roller ink system. The surface of the steel pipe is covered with wear-resistant rubber, and the medium and high special grinding. The gap is electrically adjustable and digitally displayed with an adjustment range of 0 to 6 mm. (select With: squeegee system)

Grinding anilox rolls: Independent motorized idler wheels ensure no ink during shutdown. Network cable: 160 to 500 optional. (optional: ceramic Anilox roller)

• The paper tab can be moved and locked quickly. (optional: full vacuum delivery system)

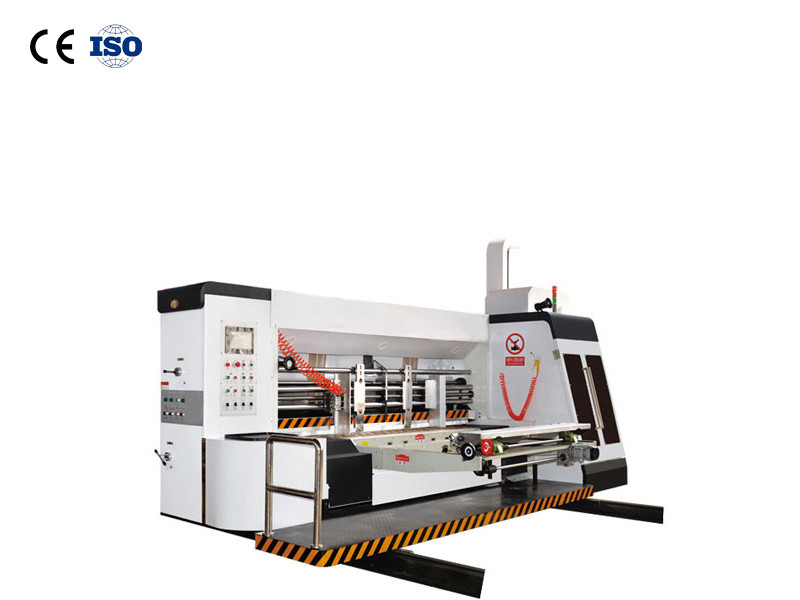

Slotting unit:

· Pre-pressure wheel device: electric linkage type slotting, pressing line and pre-pressing are completed once.

· Electric adjustment of the length, width, height and folding of the carton, digital display.

· The pressure of the pressure roller is manually adjusted, and the dial displays the adjustment value.

· Slotting knife thickness 7mm, alloy steel material, zigzag heat treatment toothed grinding, sharp edge, high precision.

· The slotted phase is adjusted by computer electric numerical 360 degree.

· Add a hand hole mold base.

· The chain control switch is installed in the slotted part to realize emergency stop, stop or resume paper feeding.

Die cutting unit:

· Manually adjust the die cutting pressure gap.

· The rubber pad roller automatically traverses the swimming device.

·Imported quick-change rubber pad and wear resistance.

· Speed ​​difference compensation system ensures line speed consistency and guarantees accuracy.

· Pad grinding mechanism to extend the life of the pad and reduce consumption.
