Model
1300

Item specifics

color
black
Max size of cover face
1300X1250mm
Mix size of cover face
400mmX400mm
Top paper thickness
140-800g
Bottom sheet thickness
2/4 ply A/B/C/E/F Flute
Machine speed
0-100m/min
Precision
±1mm
Power
7kw
Size
8m x 2m x 2.9m
Weight
About 2500kg

Product review

Description

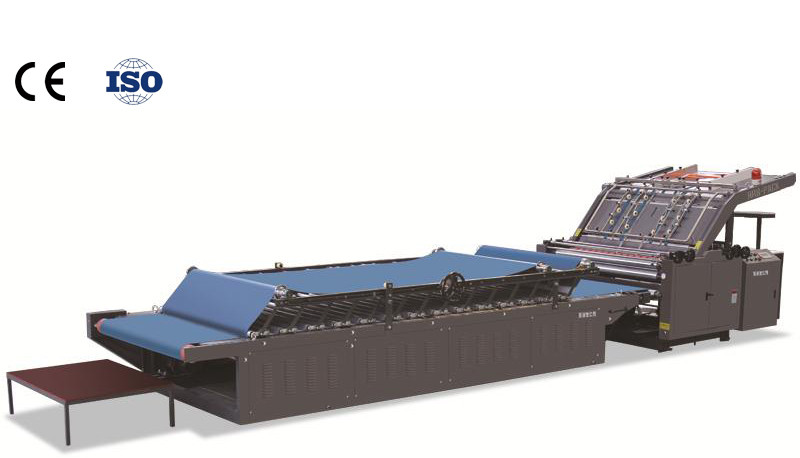

3 Ply Factory Price Semi Automatic Flute Laminator
Product Description:

■ The face paper is humanized design with artificial front propulsion, and the paper feeding table is raised to make the paper feeding easier, and the bottom paper is convenient, and the efficiency is higher; ■ The bottom paper adopts servo automatic feeding, according to the speed of manual feeding paper, automatic and continuous tracking. ■ New concept before the specified position, high positioning accuracy, the base paper does not lead; Paper lead adjustable; ■ Measuring roller linear speed scientific design, uniform glue quantity, avoid high speed operation of glue; ■ Imported electrical components to ensure the stable operation of the circuit system. PLC tracking technology, automatic fault alarm;




Application
Product features:

■ The face paper is humanized design with artificial front propulsion, and the paper feeding table is raised to make the paper feeding easier, and the bottom paper is convenient, and the efficiency is higher;

■ The bottom paper adopts servo automatic feeding, according to the speed of manual feeding paper, automatic and continuous tracking.

■ New concept before the specified position, high positioning accuracy, the base paper does not lead; Paper lead adjustable;

■ Measuring roller linear speed scientific design, uniform glue quantity, avoid high speed operation of glue;

■ Imported electrical components to ensure the stable operation of the circuit system. PLC tracking technology, automatic fault alarm;

■ Automatic glue replenishment system, can automatically replenish the lost glue amount, and with glue recycling;

■ Independent water tank control water circulation mode, ensure the back of the backing paper dry, while cleaning the rubber roller, glue groove, glue groove;

■ Single side to adjust the pressure of each pressure roller, and equipped with pressure scale display, change the specifications of the base paper adjustment in one step;

■ Floating movable press, ensure that corrugated paper will not be flattened after mounting, and keep the paperboard flat and straight

※Technical parameters

Model

1300HI

1600HI

Max size of cover face

1300X1250mm

1600X1250mm

Mix size of cover face

400mmX400mm

400mmX400mm

Top paper   thickness

140-800g

140-800g

Bottom sheet   thickness

2/4 ply   A/B/C/E/F Flute

2/4 ply   A/B/C/E/F Flute

Machine   speed

0-100m/min

0-100m/min

Precision

±1mm

±1mm

Power

7kw

7kw

Size

8m   x 2m x 2.9m

8m   x 2.3m x 2.9m

Weight

About 2500kg

About 3000kg
