Model
3200 standard

Item specifics

Machine weight
4600kg
Overall dimensions of the machine
4100*1250*2100mm
color
black
The machine warranty
A year

Product review

Description

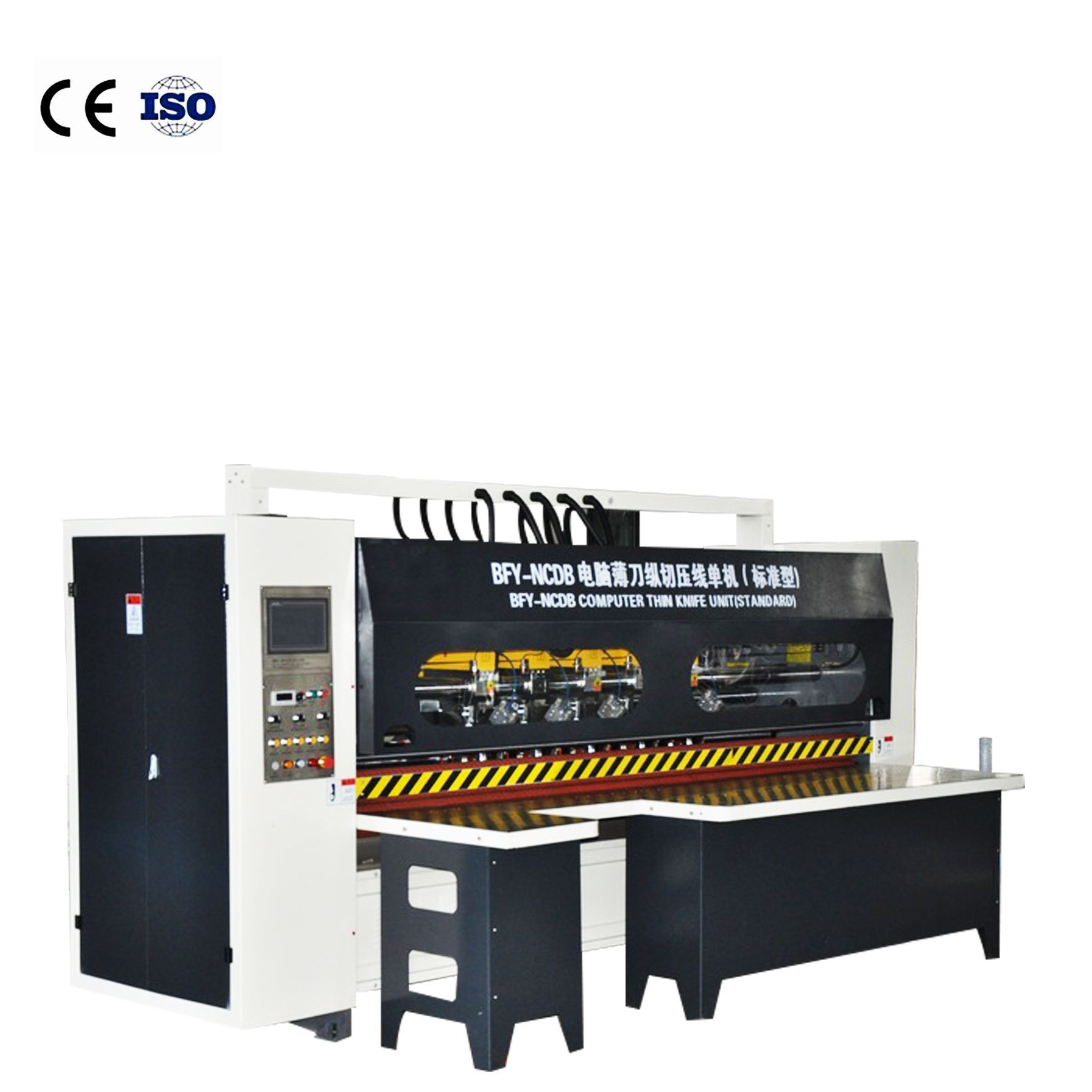

automatic paper tube cutting machine China NC blad  Details

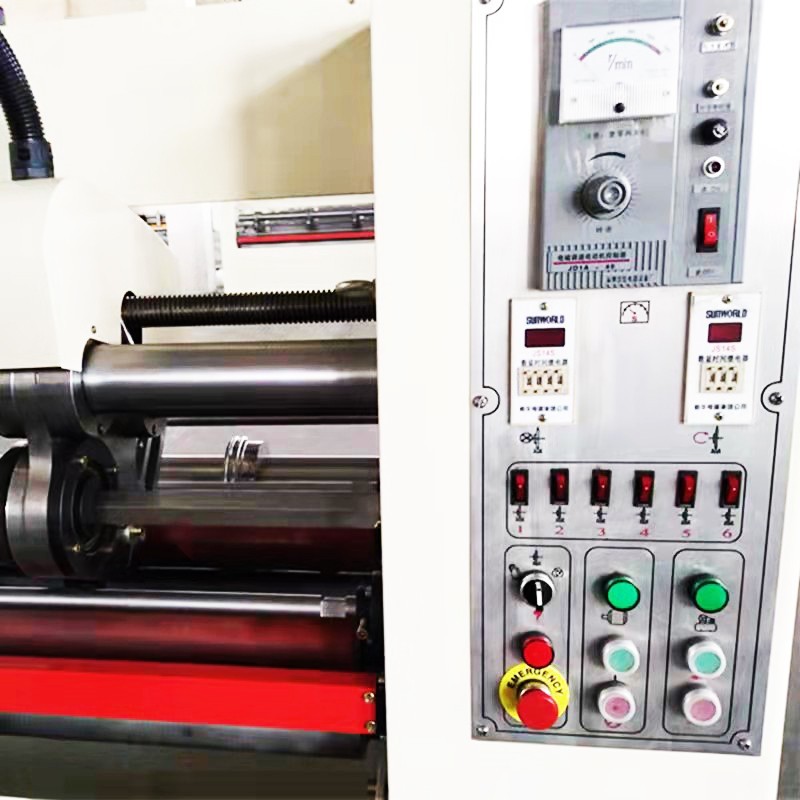

1.1 it adopts servo and PLC control, with fast order input and change speed, and simple and easy to learn operation screen.

1.2 manual sharpening mode saves labor and time.

1.3 electrical appliances are of well-known brands at home and abroad, with stable and reliable performance.

1.4 the slitting knife adopts tungsten steel alloy blade, with long service life, neat slitting paperboard incision, no indentation and burr.

1.5 pre press and fine press first, then cut (press paper with sun wheel), and finally pull paper with rubber shaft.

1.6 crimping line type: pre press the glue axis, fine press the optical axis, and the printing face is down without indentation.

1.7 the line pressing adopts the combination of pre pressing and fine pressing, which does not explode, is easy to bend and has beautiful linearity.

1.8 imported synchronous belt is adopted for blade transmission, with stable transmission and low running noise.

1.9 the order replacement time is 8-15 seconds.

Parameter
  • Maximum slitting board width:2900mm
  • Number of crimping wheels:6 pairs
  • Outer diameter of paper separation thin blade:230mm
  • Maximum mechanical speed:200m/min
  • Minimum slitting width:180mm
  • Thickness of paper separation thin blade: 1.3mm (alloy)
  • Number of separation knives: 4 pieces
  • Minimum crimping width:150mm
  • Main motor power: 7.5kW frequency conversion
Electrical brand
  • 1Main component bearings:Humanism, Harbin
  • 2Button:Koneda
  • 3Contactor:Schneider
  • 4Proximity switch:Bei Funing
  • 5touch screen:Kunlun Pass state
  • 6PLC:Taiwan Yonghong
